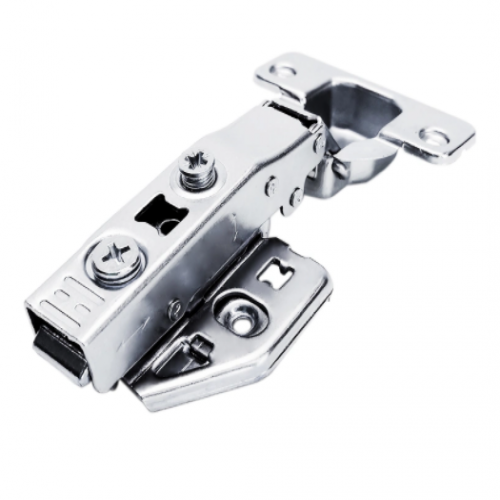

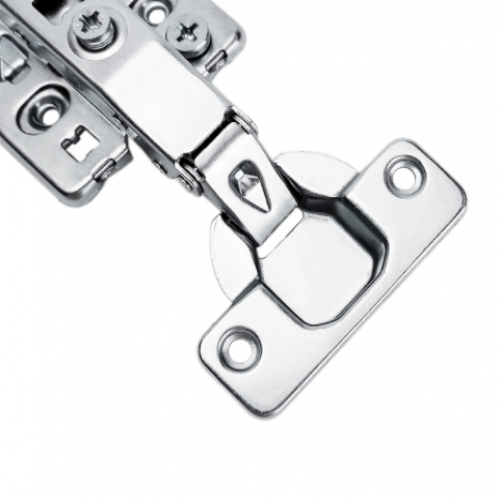

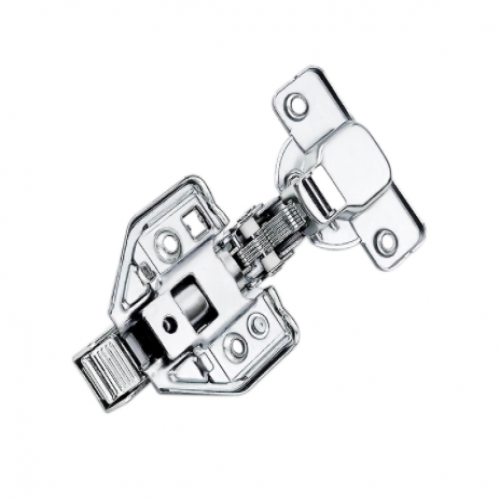

Hinge, Clip on Soft Close Hinges Door Hardware Furniture Fittings
Reference FOB Price |
US $0.23-0.25/Piece 2,000 Pieces (Min.Order) |
Type: | Furniture Hinge, Clip on Soft Close Hinges |
Thickness: | 2.5mm |
Angle: | 95-100° |
Hole: | With Hole |
Disassembly: | Disassembly |
Fixed: | Fixed |
Product Description:
Basic Info.

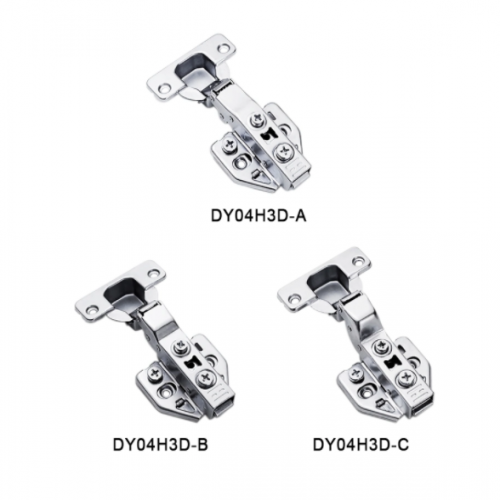

Model NO | DYO4H-3D-A/B/C | Color | Silver | |
Customized | Customized | Condition | New | |
Thickness of Hinge Cup/Arm/Plate | 1.0/1.2mm | Name | Cabinet Door Hinge | |
Test | SGS | Crank Height | nset(C=19);Half Overlay(C=8);Full | |
Plate Height | H=2,H=4 | Opening Angle | 90～105 Degree | |
Material | Steel | Certificate | ISO9001 | |
Transport Package | 2 PCS:Plastic Bag,200 PCS: | Trademark | FGV SLIDE | |
Origin | Guangdong,China (Mainland) | Production Capacity | 100000 Pieces Per Week |
Product Description
Key Features:
1. The coating passed the 48-hour salt spray test and 50000 times opening and closing cycles
2. 100% product inspection
3. The product base of ISO9001 and SGS quality certification
4. Real materials, visible weight, high quality guarantee
5. Solid-mounted hinge, usually used without secondary dismantle door installation, such as the whole cabinet, it affordable. Cold roll steel, 35mm Hinge Cups, copper hydraulic cylinder block, High materials. Damping hydraulic hinges, provide a cushioning properties of using a liquid ,buffering effect is a good hydraulic buffering hinge.
Testing | SGS TEST |
Passed over 50,000 open-close | |
Passed 48 hours salt spray test | |
Sample | Sample free and small order can be accepted |
Features | Strengthened adjustable screw can widen |
Widening manganese steel spring,can disperse force when the hinge closed. Strengthened spring, thickness 2.5mm instead of common one thickness: 1.2mm | |
Adopt advanced hydraulic system,longer life time,smaller volume |
